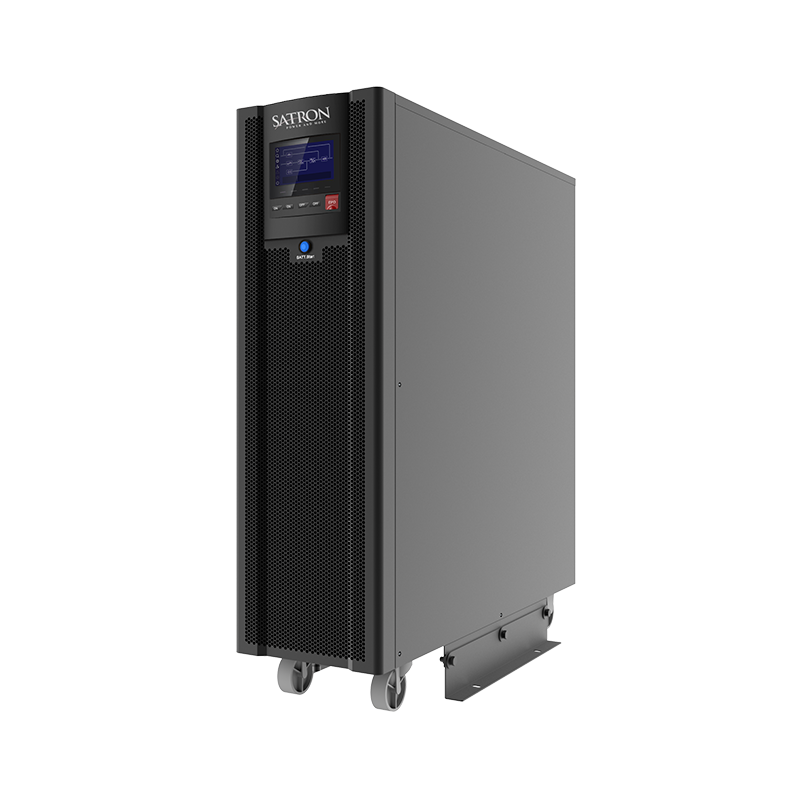

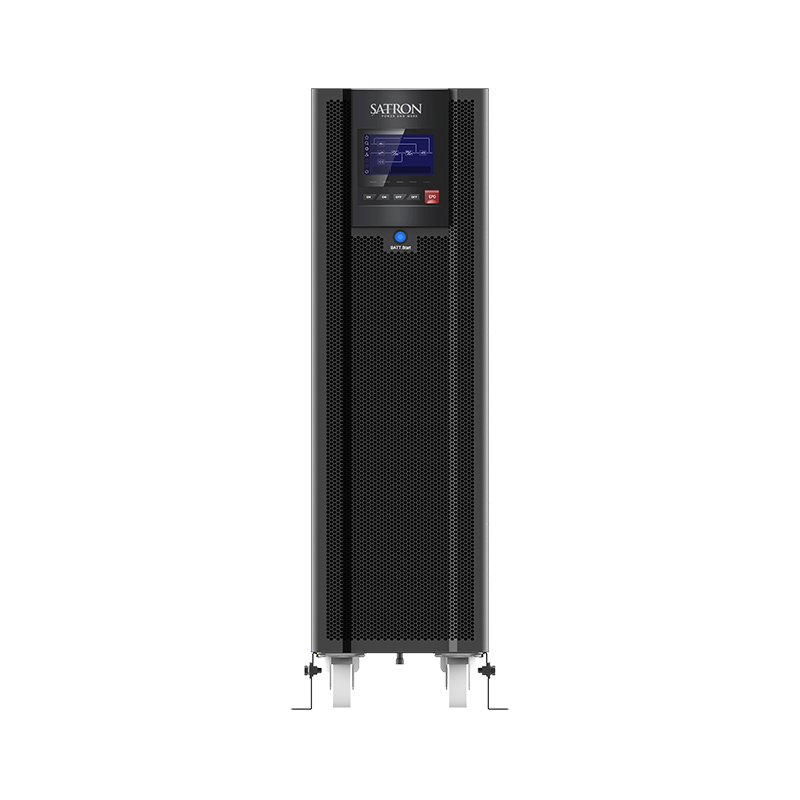

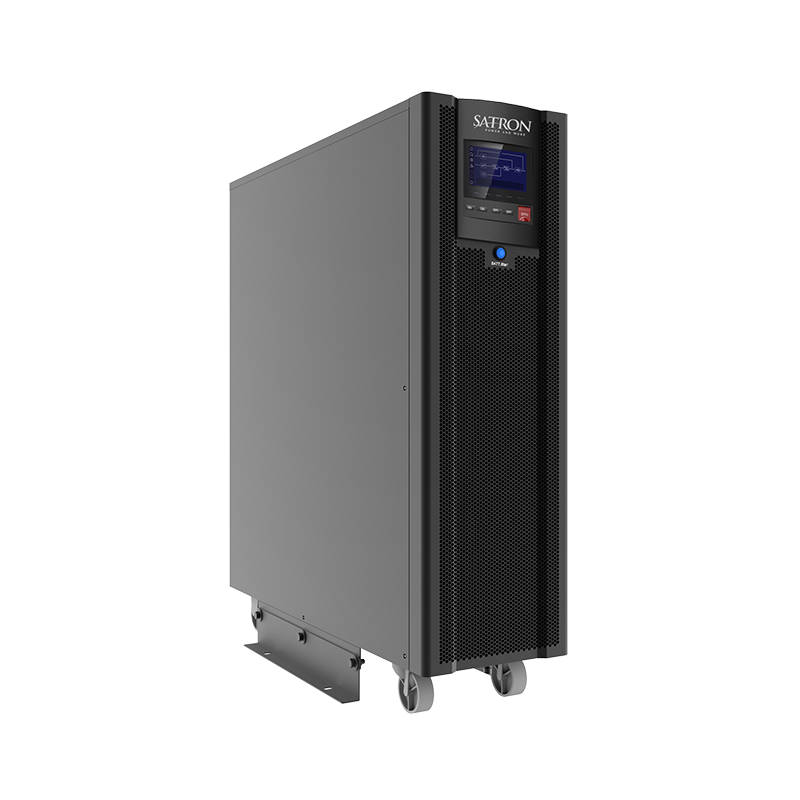

S3100 / S3300 10 TO 40KVA

High Reliability

Super wide input voltage range -60%~+25% for high grid adaptability and prolong battery service life.
Dual DSP control for top performance and reliability.
Intelligent fan speed control reduces the noise and prolongs fan service life.
Anti-corrosion resistant coating in all PCB boards.
Full protection with input, output, bypass, maintenance bypass and battery breaker.
Generator compatible ensure the clean power for extend power outage.
Local and remote EPO function for immediately remove power from connected load in the event of emergency.
Short circuit time settable 10-200ms which provide high protection for system.
Bus synchronization control function provides reliable high power for the dual bus application.

Green Power

Unity Output power factor more powerful to connect more critical loads.
AC/AC efficiency up to 96% and 25% load above 94% efficiency reduces heat dissipation and limits power consumption costs.
ECO mode efficiency up to 99% will significant reduce the TCO.
3 level inverter and IGBT technology ensure input PF>0.99 and low THDi <3% for maximum upstream sources compatibility.
Self-load test function, easy debugging and easy onsite test during commissioning, before it is connected the real load, without using costly temporary loads, cabling and breakers for energy saving.

Intelligent Management

Multi-functional touch screen with LED Indicators, ensure comprehensive and visualized information display.
Large Intelligent battery management which include 3 stage battery charging mode, Battery static and battery test function which prolong battery service life data storage capacity, events logs 10000pcs.
Key components pre-alarm function.
Smart programmable dry contact communication.
Degusting function which save the service time and keep system performance.
Easy onsite firmware update.

Flexible Design

Adjustable input and output phase 3:3/3:1/1:1 for 10-20KVA and 3:3/3:1 for 30-40KVA to meet multiple power distribution condition.
Integrated autonomy with compact footprint and external battery slot for extend power outage.
DC voltage settable ±96~±240 for 10KVA, ±144 ~±240 for 20~40KVA.
Multi-language of, English, Italian, Polish, Russian, Spanish, Korean, Chinese.
Frequency converter function (60Hz/50Hz or 50Hz /60Hz).
Common battery bank in 2 units parallel system.
Easy onsite parallel slot modification up to 4 units.
Wheel design easy for movement and relocation.

Technical Specifications

Model		S3100/S3300
Capacity (KVA)		10	20	30	40
Input
Phase		3:3/3:1/1:1		3:3/3:1
Voltage (Vac)		80-280 (L-N)/138-485 (L-L)		138-485 (L-L)
Frequency (Hz)		40-70
Power Factor		≥0.99
THDi at full Linear load		<3%
Dual Main Input		Yes
Output
Capacity (kW)		10	20	30	40
AC/AC Efficiency (Max.)		96%
Power Factor		1.0
Voltage (Vac)		220/230/240±1% (L-N) 380/400/415±1%(L-L)
Frequency (Hz)		50/60±0.1 (battery mode)
THDv		THD <1% (linear load),THD <3% (nonlinear load)
Crest Factor		3:1
Overload		110% load for 60 mins, 130% load for 10 mins, 155% load for 1 min, above 155% load for 200ms
EPO		Remote and Local
Cold Start		Yes
Battery
Voltage (Vdc)		±192 (±96 ~±240 adjustable)	±192 (±144 ~±240 adjustable)*
Internal Battery		16~40*9AH/12V	24~40*9AH/12V	48~80*9AH/12V
Charging Current (A)		1-10 settable		1-20 settable
General
Communication Interface		RS485+EPO+Dry contact (1 input,5 output)(SNMP are optional in slot)
Display		4.3 Inch Touch Screen+ LED+ Physical buttons
Alarm		Low battery, abnormal AC input, UPS failure, etc
Protection		Low battery, overload, short-circuit and over temperature, etc
Noise (dB)		<55
Operating Temperature (°C)		-5~40
Altitude (m)		2000, no derate
Dimension (W×D×H)(mm)		250×755×880		300×785×1250
Weight (kg)	with Battery	98 (20 ×9AH)	132 (32×9AH	240 (64×9AH)	240 (64×9AH)
	without Battery	50		85
	with TX	143		240
