S3100 / S3300 evo 10 TO 120KVA

Highlight

• Extensive range of solutions management.
• Compactness.
• Efficiency up to 96.6%.
• High power availability.
• Smart battery management.
• Maximum reliability and availability.
• Flexibility of use.
• Graphic touch screen display.

The S3100/S3300 evo UPS is available in 10-120 kVA/kW models utilizing the very latest ON LINE double conversion technology.

S3100/S3300 evo is classified as VFI-SS-111 as defined by IEC EN 62040-3.

The S3100/S3300 evo series is a transformer-free UPS available in 10-15-20 kVA/kW models with three-phase/single-phase input and single-phase output, and 10-15-20-30-40-60-80-100-120 kVA/kW models with three-phase input and output.

S3100/S3300 evo is designed and built using state of-the-art technology and components. It applies the advanced technologies such as DSP (Digital Signal Processor), dual core microprocessor, three level inverter circuits and resonant control to provide maximum protection to the critical loads with no impact on downstream systems, whilst maintaining optimised energy savings.

S3100/S3300 evo is designed to protect critical industrial and Information Technology (IT) systems with the following features:

Extensive Range Of Solutions

S3100/S3300 evo has been conceived to optimize the specific requirements by enhancing the installation flexibility.

SATRON UPS offers S3100/S3300 evo in three different frame solutions to satisfy any critical power demand and application.

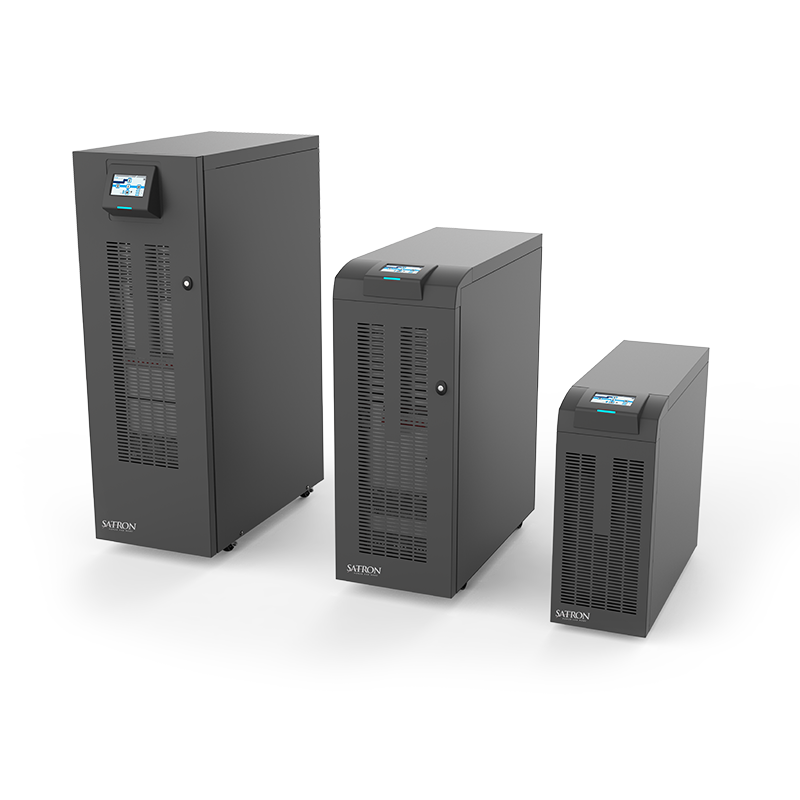

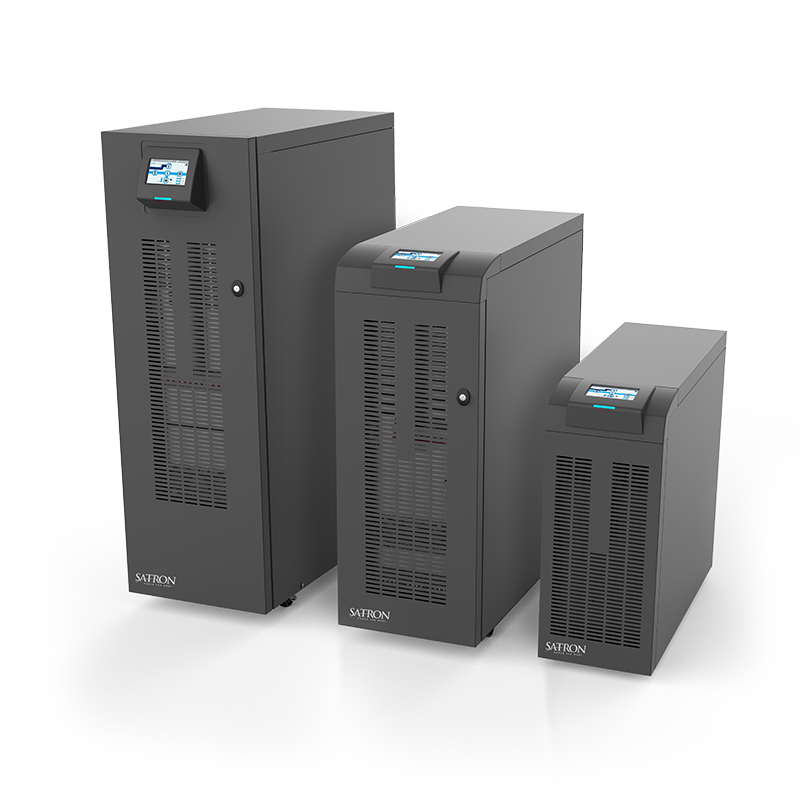

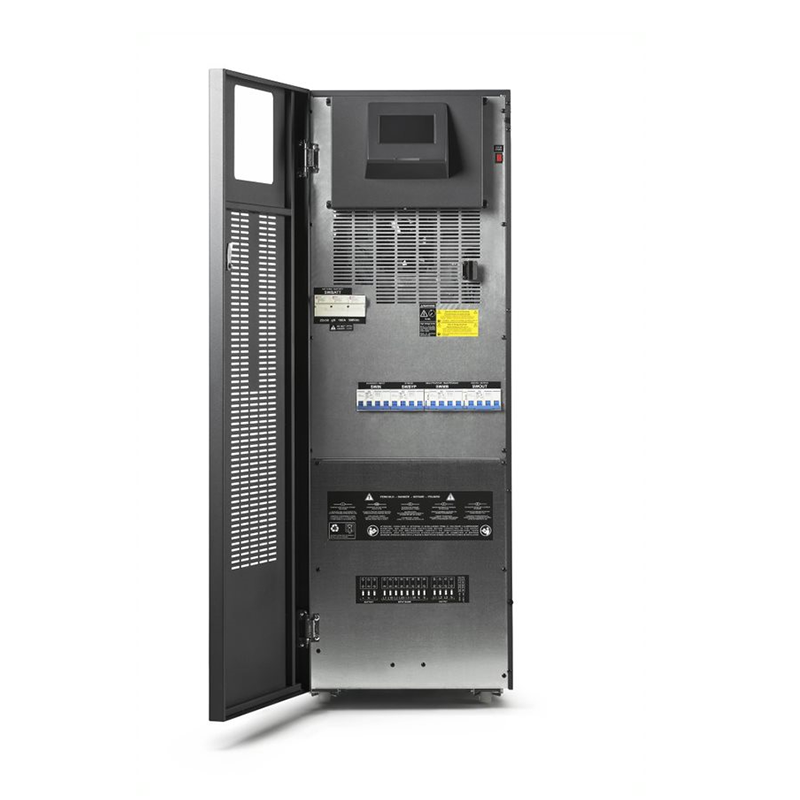

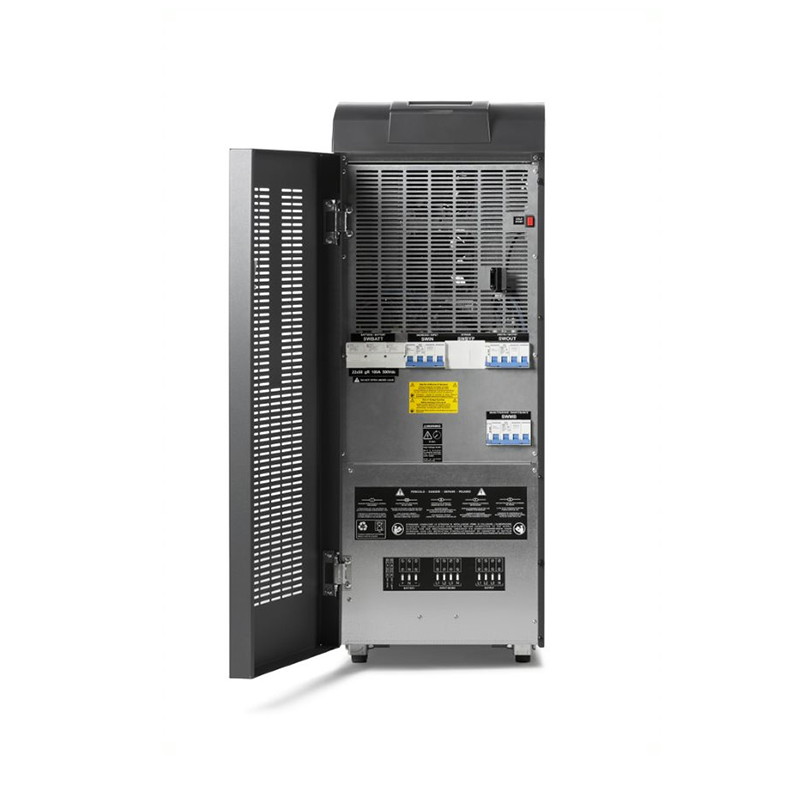

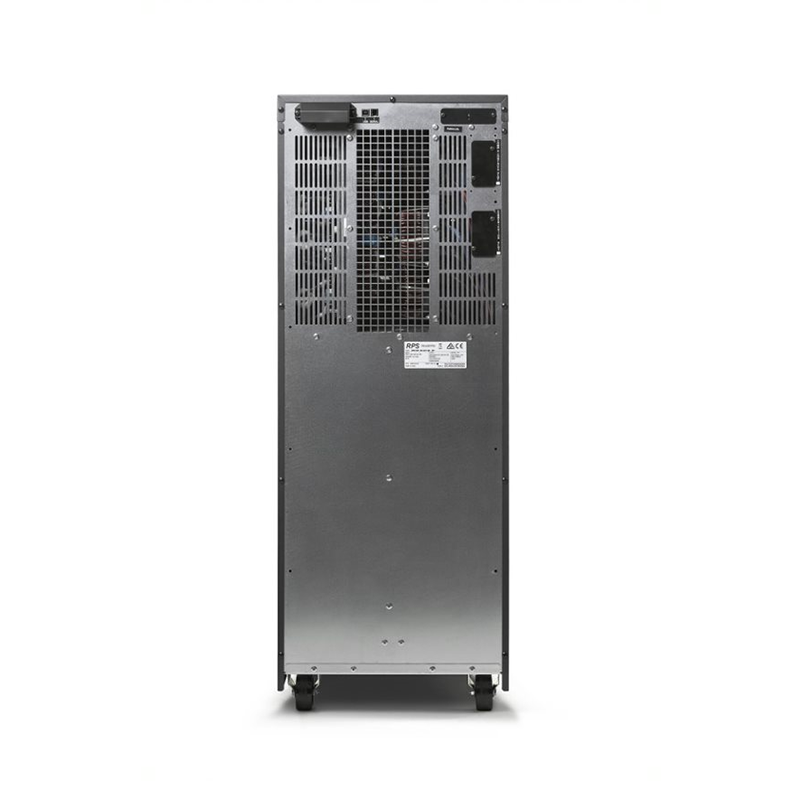

The three different frame types available are: Compact, Active and Xtend.

Compact (CP T): this cabinet frame is specifically devised to offer a compact but efficient solution for tailored applications; thanks to the ultimate technologies applied, this solution offers unmatched power (up to 20 kVA @ Pf 1) and autonomy (12 minutes of backup time at typical load) in an extremely reduced space.

Active (ACT) : this solution offers an optimized degree of flexibility to meet different power requirements and battery autonomy. The solution offered is extremely compact but exceptionally powerful, with the possibility to deliver up to 40 kVA (@ pf 1) and build one or two levels of internal battery backup time.

Xtend (XTD) : this version is the most flexible solution available to meet installation requirements and power demand. In an extremely small footprint, it is possible to build up to three-levels of battery backup time. In addition, the mechanical design makes it possible to install an isolation transformer or easily change the degree of protection from IP20 to IP21 or even IP31.

Compactness

Modern guidelines and sustainable best practices direct us to conceive and design UPS with particular focus on the entire product life cycle, therefore applying ultimate but resilient technologies, recyclable materials and miniaturisation of assemblies whilst ensuring the systems global reliability, which is pivotal for any UPS. The internal card layout has been optimized to reduce the number of components, to reduce the number of interconnections and to reduce the space required, whilst at the same time increase global reliability and Mean Time Between Failures (MTBF) and to minimize operational expenditure such as service operations and maintenance costs. The result is an outstanding range of three different solutions providing powerful but compact designs as follows:

• Compact:less than 0.25 square meters and only 0.17 cubic meters of volume.
• Active: less than 0.35 square meters and only 0.33 cubic meters of volume.
• Xtend: less than 0.4 square meters and less than 0.5 cubic meters of volume.

High Efficiency

S3100/S3300 evo is a true online double-conversion UPS system providing the very highest levels of power availability, flexibility and unrivalled energy efficiency with superior performance for any small data centre and mission critical applications.

With a full power rating (kVA=kW unity PF), the S MOEL provides the maximum available power without any de-rating. Thanks to the three-level IGBT inverter topology (constructed using modules rather than discrete components) and innovative digital control, the S3100/S3300 evo provides up to 96.6% overall efficiency, whilst maintaining a reduced number of components, connections and ribbon cables, which increases the overall system reliability, thanks to a higher MTBF.

SATRON UPS’ advanced average current mode digital PFC control and State-of- the-art three-level NPC inverters working at high frequency (18 kHz), contributes to minimize the UPS’s impact on the grid and hence reducing the overall operational costs and energy bills.

MECHANICAL CHARACTERISTICS	S3100/S3300 COMPACT-CPT	S3100/S3300 ACTIVE-ACT	S3100/S3300 XTEND-XTD
Cabinet layout description	Free standing type with wheels and terminals/switches on rear	Free standing type with wheels and terminals/switches on front	Free standing type with wheels and terminals/switches on front
Range [kVA/kW]	10-15-20 (1 Ph) 10-15-20 (3 Ph)	10-15-20 (1 Ph) 10-15-20-30-40 (3 Ph)	10-15-20 (1 Ph) 10-15-20-30-40 (3 Ph)
Battery	Space for: 40 blocks	Space for: 2x40 blocks	Space for: 3x40 blocks
Ventilation	Forced, front to rear	Forced, front to rear	Forced, front to rear (Air filter door as option)
Cabinet IP rating	IP20 finger proof (either with cabinet doors open or closed)	IP20 finger proof (either with cabinet doors open or closed)	IP20 finger proof (either with cabinet doors open or closed) IP21/31 as option
Cable input	Bottom (rear)	Bottom (front)	Bottom (front)



S3100/S3300 MODEL applies a zero impact onto its power source, whether this is from the mains power supply or a generator, these results in:

• Very low input current distortion <3%;
• Near unity input power factor 0.99;
• Power walk-in function that ensures progressive rectifier start up;
• Start-up delay function, to sequentially restart the rectifiers once the mains power supply is restored if there are several UPS within the overall system;
• In addition, S MODEL provides a filtering and power factor correction function within the power network upstream of the UPS, thus eliminating harmonic components and reactive power generated by the power utilities.

High Power Availability

S3100/S3300 evo a fully rated design and delivers full power (kVA=kW) regardless of the load power factor or operating temperature (full rated power is available up to 40 °C).

Furthermore, S3100/S3300 evo advanced digital control makes it possible to deliver up to 270% inverter current for 200 msec. and 150% for 300 msec. The high over current availability enables the system to deal with sudden peak loads (without static bypass intervention) and provide the short circuit current if required during operation on battery.

The innovative input stage design provides extremely high battery recharging current, whilst at the same time energy efficient conversion process during battery operation to reduce the power wasted and to increase the autonomy time compared to legacy DC/AC converters.

Smart Battery Management

S3100/S3300 evo Smart Battery Management consists of a series of features and capabilities to optimize battery management and obtain the best performance and operating life possible.

Battery recharging: S3100/S3300 evo is suitable for use with conventional hermetically sealed lead-acid (VRLA), AGM and GEL batteries, Open Vented and Nickel Cadmium batteries.

S3100/S3300 evo is also compatible with ultimate alternative backup power sources such as Li-Ion batteries and Super capacitors.

Superior battery charging current availability, up to 30 Amperes for the 40 kVA/kW power range, meaning that the S3100/S3300 evo can be utilized within any extended battery autonomy application.

Depending on the battery type, different charging methods are available:

• One-level voltage recharge, typically used for widely available VRLA AGM batteries
• Two-level voltage recharge according to IU specification
• Cyclical recharge system to reduce electrolyte consumption and lengthen the life of VRLA batteries.
• Recharge voltage compensation based on ambient temperature to prevent excessive battery charging or overheating.

Battery tests to diagnose in advance any reduction in performance or problems with the batteries.

Deep discharge protection: during extended low-load discharges, the end-of-discharge voltage is increased – as recommended by battery manufacturers – to prevent damage or reduced battery performance.

Ripple current: recharge ripple current (residual AC component at low frequency) is one of the main causes of reduced reliability and battery life. Using a high frequency battery charger,

S MODEL reduces this value to negligible levels, prolonging battery life and maintaining high performance over a long period of time.

Wide voltage range: the rectifier is designed to operate within a wide input voltage range (up to -40% at half load), reducing the need for battery discharge and thus helping to extend battery life.

Maximum Reliability And Availability

Distributed parallel configuration of up to 8 units per redundant (N+1) or power parallel system. The UPS continue to operate in parallel even if the connection cable is interrupted (Closed Loop).

Advanced technology and the use of high performance components enable S3100/S3300 evo to provide exceptional performance and utmost reliability.

The smallest overall footprint is only 0.35 sqm for S3300 evo 40 kVA/kW with two strings of 40 battery blocks.

The input power stage (IGBT rectifier) ensures an input power factor close to 1 with extremely low current distortion, avoiding the need for bulky and expensive filters.

Unity output power factor S.

S3100/S3300 evo makes it suitable to any data canter application ensuring full power availability without downgrading no matter what the load power factor range (typically from 0.9 lagging to 0.9 leading).

Extremely low output THDV under any circumstances provides a perfect sine wave and therefore a reliable power supply for the load preventing and disturbances from affecting the network users.

More active power than a traditional UPS,  guaranteeing a greater margin when sizing UPS for potential future load increases. More energy to face sudden load increase or clear output short circuits due to appliance failures downstream. Smart ventilation principle, S3100/S3300 evo manages the fan speed and airflow in accordance with the room temperature and load level.

This preserves the lifespan of the fans, whilst at the same time reduces noise levels and the overall power consumption due to unnecessary UPS ventilation. Furthermore, the overall UPS high efficiency reduces the losses and therefore the need for high levels of ventilation compared to older legacy UPS. In addition, this results in a decrease in the overall noise level at the nominal load and a reduction in the number of fans required, which significantly benefits the operating and maintenance costs.

Flexibility

With its flexible range of three solutions, configuration, performance, accessories and options, S3100/S3300 evo is suitable for use in a wide range of applications.

• Suitable for powering capacitive loads, such as blade servers, without any reduction in active power from 0.9 lead to 0.9 lag.
• ON LINE, ECO, SMART ACTIVE and STANDBY OFF operating Modes – compatible with central power supply systems (CPSS) applications.
• Frequency Converter Mode.
• Cold Start to switch on the UPS even when there is no mains power present.
• S3300 evo 20 XTEND version: cabinet (440x840x1320 mm WxDxH) for optimized solutions when medium to long-term runtimes are required (up to one hour back up time for a 20 kVA/kW at typical load rate).
• Parallel configuration up to 8 units for three-phase version.
• Optional temperature sensor for external battery cabinets, to assist recharge voltage compensation.
• High power battery chargers to optimize charge time in the event of long runtimes.
• Dual input mains power supply (not applicable on Compact, optional for Active, standard on Xtend version).
• Isolation transformers for modifying the neutral earthing (separate power sources), or for galvanic isolation between the input and output (optional inside Xtend, external for Compact or Active versions).
• Mechanical fitting for a higher rating of IP protection either IP21 or IP31 on Xtend version.
• Air filter door on Xtend version to protect UPS placed in dusty environment.
• Compatibility with alternative backup energy sources rather than lead batteries (NiCd or Li-ion batteries or Super capacitors).
• Different sized battery cabinets and capacities, for extended runtimes.

Advanced Communications

S3100/S3300 evo is equipped with a colored graphic touch screen display providing UPS information, measurements, operating states and alarms in different languages.

The default screen displays the UPS status, graphical indication of the energy path through the UPS and the operational condition of the various assemblies (rectifier, batteries, inverter, bypass) within the UPS.

Furthermore, the user interface includes a UPS status led bar which delivers immediate and clear information regarding the overall status of the UPS by changing the colour (light blue, dark blue, orange and red) according with the operating mode and condition.

• Advanced multi-platform communications for all operating systems and network environments: PowerShield3 monitoring and shutdown software included for Windows operating systems 10, 8, 7, Hyper-V, 2019, 2016, 2012, and previous versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems.
• Compatible with SATRON CONNECT (remote monitoring service).
• RS232 serial on RJ10 connector and USB ports.
• 2 slots for the installation of optional communications accessories such as network adaptors and volt free contacts etc;
• Embedded contact interface which includes 5 programmable inputs and 4 programmable outputs.
• REPO Remote Emergency Power Off for switching off the UPS via a remote emergency button.
• Graphic display panel for remote connection.

S3100EVO/S3300EVO Applications

S3100/S3300 evo UPS are suitable for applications requiring critical load protection, from a simple installation to those more complex where the requirement for the highest levels of reliability and maintainability are paramount.

LAN, Server and Datacentre: the unitary output power factor (kVA=kW) ensures the greatest power availability for efficient UPS loading.

e-business and Telecommunications: parallel operation means that the installed UPS size can be increased (up to 8 units) to keep pace with the growth of the organisation.

Industrial processes, Transport and Electro-medical systems: the UPS is designed to protect a range of loads, from industrial processes to electro-medical applications. This has been achieved through careful load analysis at the design stage of the S3100/S3300 evo project, to ensure the following characteristics:

• Optimum input technical characteristics with zero impact on the power supply source.
• Extremely high inverter short circuit and overload capacity.
• High battery recharge capacity with the option to use a variety of battery types (sealed valve regulated open-vented, Nickel Cadmium, Li-Ion) for long back-up times
• Compatibility with Super capacitors for short time back-up needs and green cost-effective solutions
• Higher IP rating on site add on solution

Options Software

 (PowerShield3/PowerNetGuard)

Accessories

NETMAN 204/MULTICOM 302/MULTICOM 352/MULTICOM 384/MULTICOM 411/MULTICOM 421/MULTI I-O /MULTIPANEL/MBB 100 A (2 pole) /MBB 125 A (4 pole)

Product Accessories

Battery temperature sensor/ER battery charger/MULTICOM 392/UPS with internal isolation transformers (XTEND version)/IP rating IP21/IP31 (XTEND version)/Dual Input Kit (ACT version)/Front door air filter (XTD version)

Technical Specifications

MODELS	S3100 CPT-ACT-XTD 10 BAT	S3100 CPT-ACT-XTD 15 BAT	S3100 CPT-ACT-XTD 20 BAT	S3300 CPT-ACT-XTD 10 BAT	S3300 CPT-ACT-XTD 15 BAT	S3300 CPT-ACT-XTD 20 BAT	S3300 CPT-ACT-XTD 30 BAT	S3300 CPT-ACT-XTD 40 BAT
Input
Rated voltage [V]	380 / 400 / 415 three-phase + N 220 / 230 / 240 single-phase + N			380 / 400 / 415 three-phase + N
Rated frequency [Hz]	50 / 60
Voltage tolerance [V]	230 / 400 ±20% @ full load1			400 ±20% @ full load1
Frequency tolerance [Hz]	40 - 72
Power factor @ full load	0.99
Current distortion	THDI ≤3%
Bypass
Rated voltage [V]	220 / 230 / 240 single-phase + N			380 / 400 / 415 three-phase + N
Number of phases	1 + N			3 + N
Voltage tolerance (Ph-N) [V]	from 180 (adjustable 180-200) to 264 (adjustable 250-264) referring to neutral
Rated frequency [Hz]	50 or 60 (selectable)
Frequency tolerance	±5% (selectable)
Bypass overload	110% infinite, 125% for 60 min., 150% for 10 min.
Output
Nominal power [kVA]	10	15	20	10	15	20	30	40
Active power [kW]	10	15	20	10	15	20	30	40
Power factor	1 up to 40 °C
Number of phases	1 + N			3 + N
Rated voltage [V]	2201 / 230 / 240 single-phase + N (selectable)			3801 / 400 / 415 three-phase + N (selectable)
Rated frequency [Hz]	50 or 60
Frequency stability on battery operation	0.01%
Voltage stability	±1%
Dynamic stability	EN 62040-3 class performance 1 non-linear load
Voltage distortion	<1% with resistive linear load / ≤1.5% with non-linear load
Batteries
Type	VRLA AGM/GEL/NiCd/Li-ion/SuperCaps
Recharging method	One level, Two level, Cyclic recharge (selectable)
Number of battery cells @ 2V	120+120
Battery arrangement	20+20 blocks (@ 12V) with Neutral central point
Recharge time	5h
Overall Specifications
Weight without batteries [kg] CPT - ACT - XTD	48-72-103	50-74-105	52-76-107	48-72-103	50-74-105	52-76-107	N.A.-78-112	N.A.-82-116
Dimensions CTP (WxDxH) [mm]	Compact: 280x840x700							Not applicable
Dimensions ACT (WxDxH) [mm]	Active: 380x850x1025
Dimensions XTD (WxDxH) [mm]	Xtend: 440x840x1320
Communications	UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays
Ambient temperature for the UPS	0 °C - +40 °C
Recommended temperature for battery life	+20 °C - +25 °C
Range of relative humidity	5-95% non-condensing
Colour	RAL 7016 Anthracite grey
Noise level at 1 m [dBA ±2] SMART ACTIVE	<40
IP rating	IP20
SMART ACTIVE efficiency	up to 99%
Standards	European directives: L V 2014/35/EU low voltage Directive EMC 2014/30/EU electromagnetic compatibility Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant Classification in accordance with IEC 62040-3 (Voltage Frequency Independent) VFI - SS - 111
Moving the UPS	Castors / pallet jack
