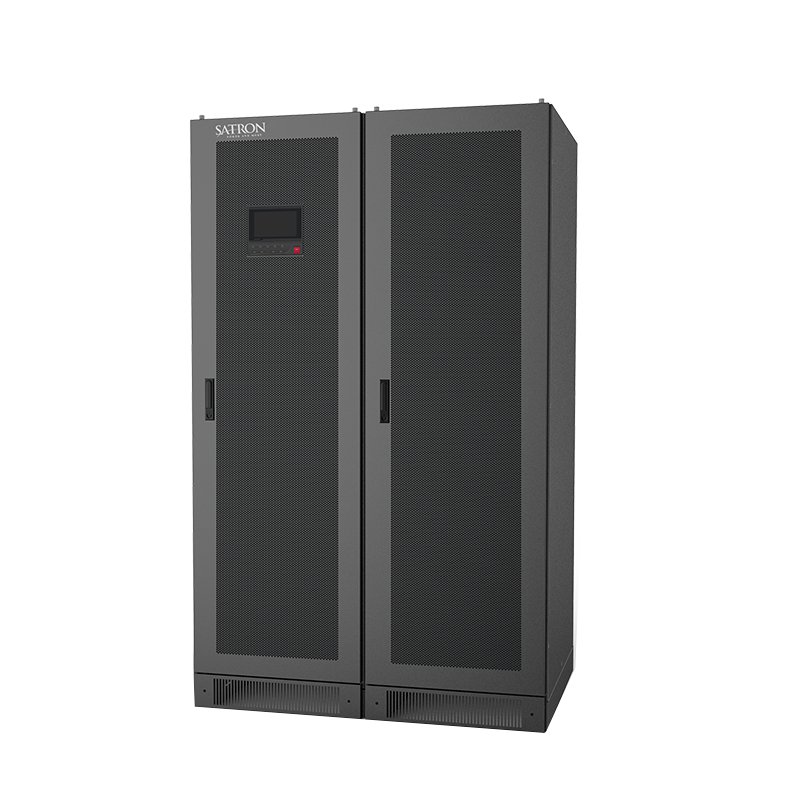

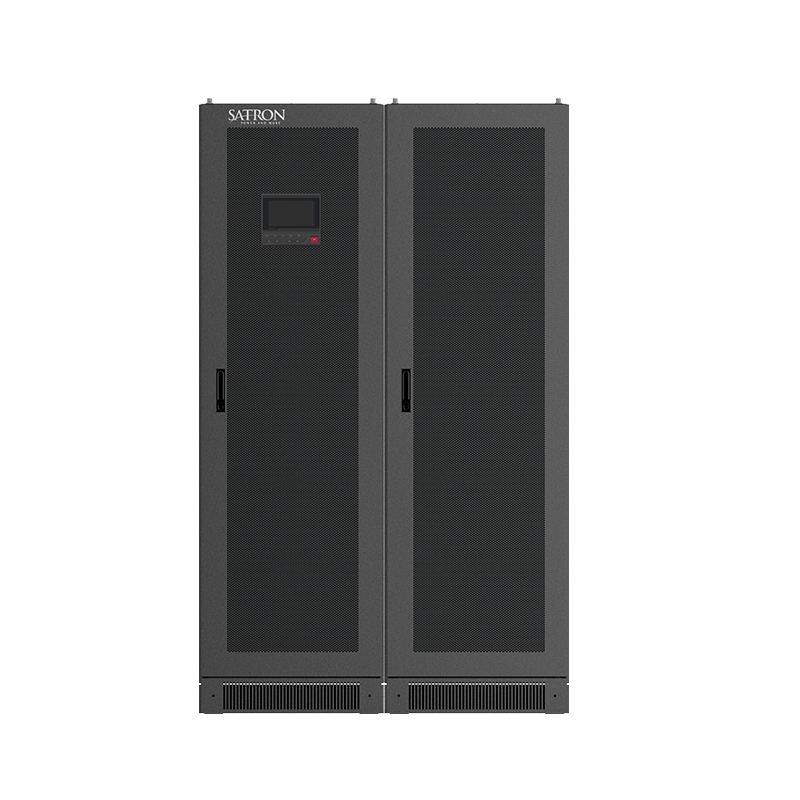

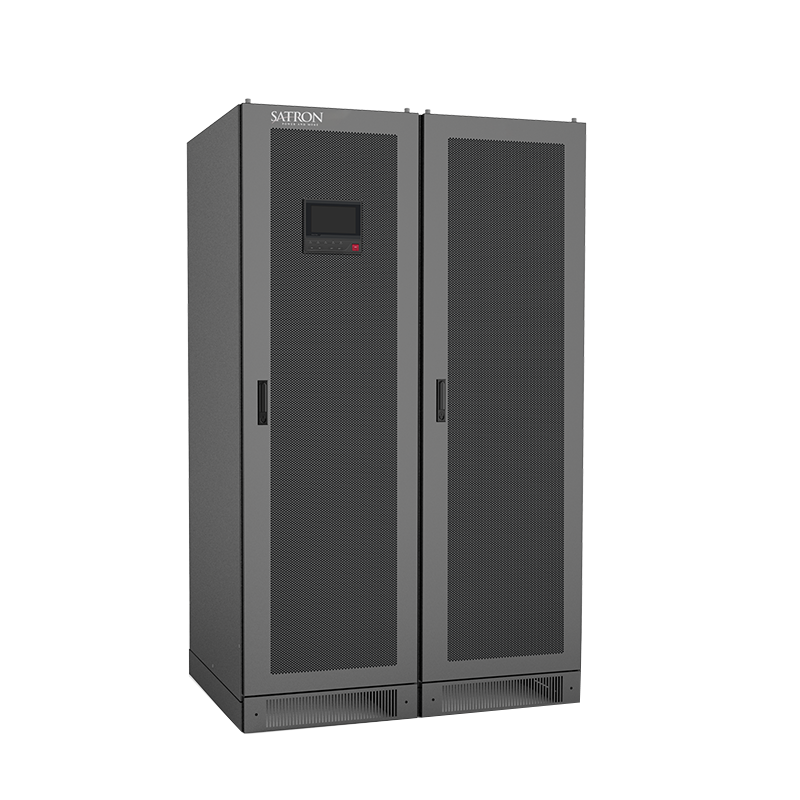

CELTA Pro CP3
Highlights
- 3 Level Technology
- All Module Hot-swappable Design
- Power Factor 1 (kVA=kW)
- High Efficiency 96%
- Fault Trace Management
- Dual system control card

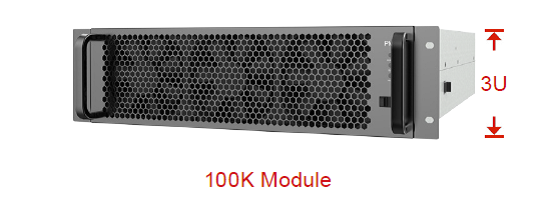

- Most compact 100KW module 3U
High Reliability
- Wide input voltage and frequency range with high grid adaptability and prolong battery life
- All module hot-swappable design ensures uninterrupted operations during maintenance and easy for module replacement
- Power module with separate internal air channel which hot air drives directly towards heat sink without distressing the PCB’s and other internal sensitive components, improving the components service life and UPS reliability
- High overload capacity on inverter and bypass
- The most advanced and dual DSP control prevents single failure point and increase performance.
- Intelligent fan control and redundant design: 15% load can be driven when 2 fans fail and 40% load when 1 fan fails
- Integrated with input, output, bypass breaker and manual bypass switch for better protection of system.
- All-round conformal coating to all PCB boards, protect electronics from environmental effection and corrosion.
- Standard dust filter protect UPS placed in dusty environment.
- Cold start function which allow UPS start on battery when grid is available.
- Bus synchronisation control function provides reliable high power for dual bus application
- Power walk in function decrease the inrush to mains or generator.

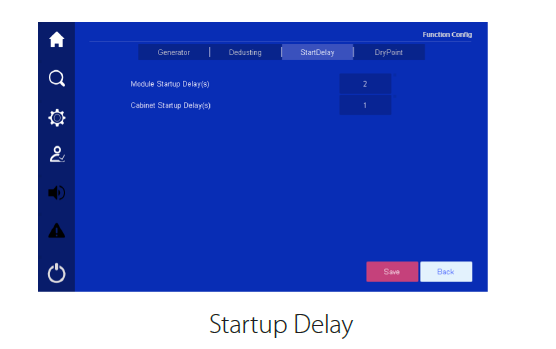

- Start-up delay function, to sequentially restart the rectifiers once the mains power supply is restored if there are several UPS within the overall system
No derating operates up to 40°C and continuously running under high ambient temperature up to 50°C with auto-derating
Green Power
- Latest generation IGBT and three level technology, Low harmonic, high efficiency, effectively energy-saving
- High efficiency in online mode (>97%) reduces heat dissipation and limits power consumption costs
- W-ECO mode could reach 98.5% efficiency, THDi below 5% and transfer time below 4ms to reduce TCO.
- ECO mode efficiency up to 99.2% lead to significant cost reduction
- Low THDi≤2% and input power factor 0.99 reduce the pollution to grid and reduce upstream investment costs
- 3U 100KW power module make sure utility output power (kVA=kW) to maximise power availability and high power density.
- Self-load test function, easy debugging and easy onsite test during commissioning without using costly temporary loads, cabling and breakers for energy saving.
- Intelligent sleep mode which UPS module sleep in random keep maximum efficiency and energy saving.
- 8 units of intelligent paralleling helps to achieve maximum capacity up to 9.6MW.
Intelligent Management
- Fault Trace Management (FTM) for convenient failure analysis (waveform record before & after of the fault point for 200ms) which easily figure out faulty point.
- 3 stage battery charging prolong the service life of batteries.
- Intelligent battery management and multiple setting, 30-50 pcs batteries per string allow customers to get the faulty battery out instead of replacing it
- Key components pre-alarm function which precaution the system fault and remind service for key components, like capacitor, fan
- Full asset management record the spare parts replacement, timeline and service people.
- Cabinet temperature detect and pre-notification which prevent over temperature.
- Smart programmable dry contact which have 6 input dry contact and 3 output dry contact, which input dry contact have more than 10 functions and output dry contact have 18 functions allows to settable at site.
- Smart generator mode which allow UPS sent signal to turn on and off generator, also taking part power from battery to compensation generator capacity
- Self-deducting function which save the preventive service time
- Common battery bank on parallel mode
- Frequency converter function(60Hz to 50Hz or 50Hz to 60Hz)
- VRLA and Lithium battery compatible design
User-friendly Interface
- User-friendly double physical ON/OFF button design to avoid false operation
- User-friendly graphical interface with Single-line mimic diagram showing system status.
- Colourful 7 inch touch screen with LED Indicators, ensure comprehensive and visualized information display.
- High security access with separate password levels for users, technician and service engineers
- Large data storage capacity, 10000pcs events logs.

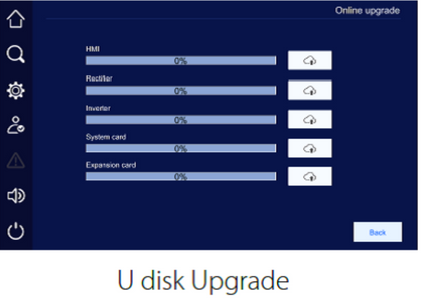

- Support firmware online update, one time update for touch screen, power unit, bypass unit and extended card.
- Main unit display allows checking the information of each UPS status during parallel mode
- Communication card: SNMP
- Expanded dry contact kit( 3 in 2 out)
- BMS kit for lithium battery communication
- Top cable Kit
- KEHUA Modular Lithium battery
- Intelligent Battery Monitoring System
- Battery tripping kit
- N+X in parallel
- Input isolation transformer
- SPD: C Grade
- Battery Charge Temperature Compensation
|
Model |
CELTAPro 400-1200 |
|||||||||||
|
Power Module |
CP-100 |
|||||||||||
|
|
CP-400 |
CP-500 |
CP600 |
CP-800 |
CP1000 |
CP1200 |
||||||
|
Input |
||||||||||||
|
Voltage Range (Vac) |
3Φ4W+PE,380/400/415 L:L 138~485 |
|||||||||||
|
Input Wiring |
3Ph+N+PE |
|||||||||||
|
Input Frequency (Hz) |
40-70 |
|||||||||||
|
Power Factor |
≥0.99 |
|||||||||||
|
THDi |
≤2% (linear load, full load); ≤3% (nonlinear load, full load) |
|||||||||||
|
Phase |
3Φ4W+PE |
|||||||||||
|
Bypass |
||||||||||||
|
Bypass Voltage (Vac) |
380/400/415: -20%~+15% |
|||||||||||
|
Bypass Voltage Range (Vac) |
-15% (-20%/-30% optional) ~+15%(+10% /+20% optional) |
|||||||||||
|
Frequency Range (Hz) |
50/60(±5%/±10%) |
|||||||||||
|
Overload |
≤130%: long run; 131%-150%: 5min; 151%-200%: 1s; 201%-300%: 100ms; >300%: protect immediately. |
|||||||||||
|
Battery |
||||||||||||
|
Battery (Vdc) |
±240 (±180~±300 settable) |
|||||||||||
|
Charging Current (A) |
N×30 Maximum (N = the number of power module) |
|||||||||||
|
Output |
||||||||||||
|
Power Module (kVA) |
100 |
|||||||||||
|
Capacity (kVA) |
400 |
500 |
600 |
800 |
1000 |
12000 |
||||||
|
Power Module Number |
4 |
5 |
6 |
8 |
10 |
12 |
||||||
|
Power Factor |
1 |
|||||||||||
|
Phase |
3Φ4W+PE |
|||||||||||
|
Waveform |
sine wave |
|||||||||||
|
Voltage (Vac) |
L-L:380,400,415 ±1% |
|||||||||||
|
Frequency (Hz) |
50/60± 0.2% (battery mode) |
|||||||||||
|
Three Phase Difference |
True sine wave，≤2 degrees |
|||||||||||
|
THDv |
≤1% (linear load, full load);≤3% (nonlinear load, full load) |
|||||||||||
|
Static Bypass Transfer Time |
0 |
|||||||||||
|
System Efficiency(MAX) |
97% |
|||||||||||
|
Parallel Mode |
Advanced no-master-slave parallel technology, N+1 redundancy |
|||||||||||
|
Overload Capacity |
101-105% Long run, 106-110% load for 60 minutes, 111%-130% load for 10 minutes, 131%-150% load for 1minute, over 150% load transfer to bypass. |
|||||||||||
|
Overall Specifications |
||||||||||||
|
Display |
7 inch Touch screen+ LED+ Physical buttons |
|||||||||||
|
Operating Temperature (ºC) |
0~40 |
|||||||||||
|
Storage Temperature (ºC) |
-40~70 |
|||||||||||
|
Relative Humidity |
0~95%, no condensation |
|||||||||||
|
Communication Function |
RS485, RS232, dry contact (SNMP optional) |
|||||||||||
|
Noise (dB) |
<70 |
|||||||||||
|
Cabling |
Bottom/Top |
Top |
||||||||||
|
Power Module Dimension(W×D×H)(mm) |
500×750×130(3U) |
|||||||||||
|
Power Module Weight (kg) |
55 |
|||||||||||
|
Cabinet Dimension(W×D×H)(mm) |
1200×1000×2000 |
14001000×2000 |
18001000×2000 |
|||||||||
|
Weight (kg) |
Frame |
480 |
506 |
580 |
650 |
740 |
||||||
|
Bypass Module |
32 |
50 |
60 |
80 |
||||||||
